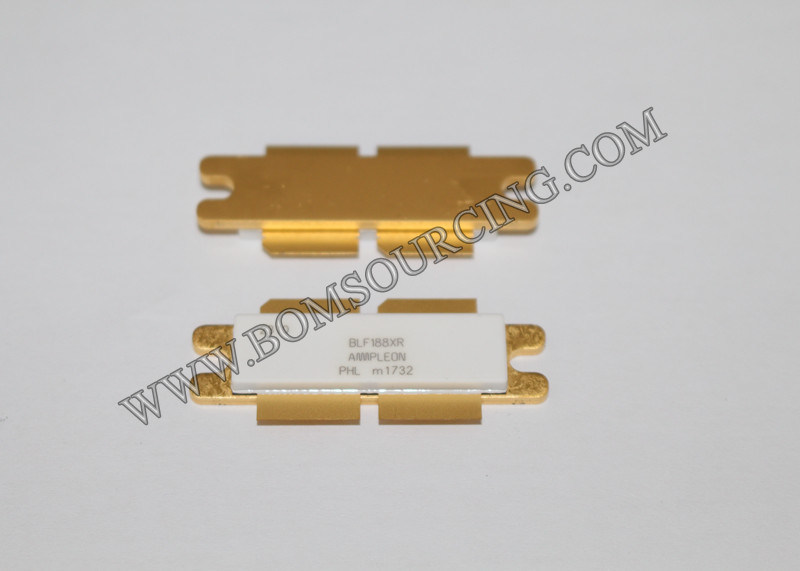

BLF188XR RF Mosfet Power Transistor 108MHz 24.4dB 1400W SOT539A

Product Details:

Place of Origin:	USA
Brand Name:	/AMPLEON
Certification:	IEC
Model Number:	BLF188XR,112

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	factory standard packing
Delivery Time:	1-2 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Transistor Type:	LDMOS (Dual), Common Source	Frequency:	108MHz
Gain:	24.4dB	Voltage - Test:	50V
Current - Test:	40mA	Power - Output:	1400W
Voltage - Rated:	135V
High Light:	high power mosfet transistors , n channel transistor

BLF188XR RF Mosfet LDMOS (Dual), Common Source 50V 40mA 108MHz 24.4dB 1400W SOT539A

Features

eXtremely rugged high-power delivery up to 1400 W
Excellent stability under severe mismatch conditions
Compact and easy-to-manufacture due to all-planar matching structure
Improved Class-C operation due to new dual-sided ESD diode structure with larger negative voltage range
Reduced system cost
Replaces VDMOS and eliminates hazardous substances

Applications

Terrestrial broadcast systems
FM transmitters
IBOC digital radio
VHF TVs
ISM applications
Igniting plasmas and lasers
Synchrotrons
MRIs
