| Place of Origin: | CHINA |
| Brand Name: | AVAGO |
| Certification: | ROHS |
| Model Number: | HCPL-0708 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | 1500PCS/Standard Package |
| Delivery Time: | 2-3 working days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | Consultation |
| Voltage - Isolation: | 3750Vrms | Input Type: | DC |
|---|---|---|---|
| Current - Output / Channel: | 2mA | Data Rate: | 15MBd |
| High Light: | resolver to digital converter ic,integrated circuit chip |
||

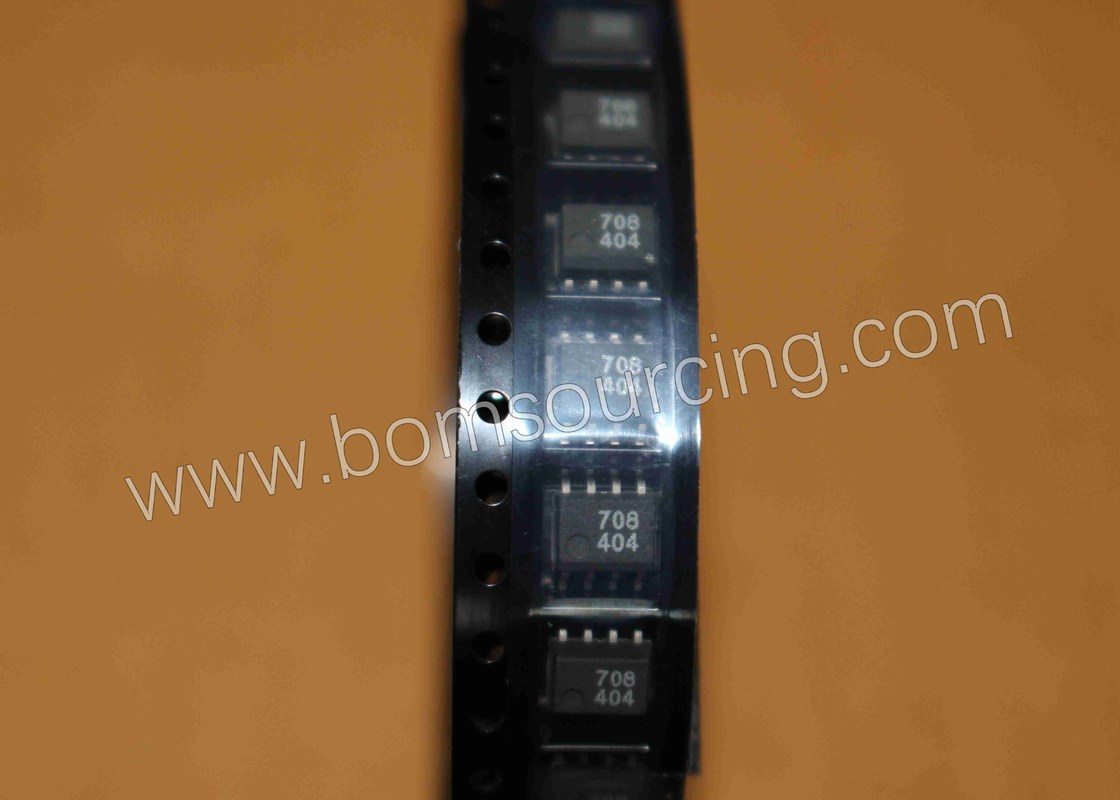

HCPL-0708 Logic Output Optoisolator 15MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 10kV/µs CMTI
| Description |
|
Available in SO-8 package, the HCPL-0708 optocoupler utilizes the latest CMOS IC technology to achieve outstanding performance with very low power consumption.Basic building blocks of the HCPL-0708 are a high speed LED and aCMOS detector IC. The detectorincorporates an integratedphotodiode, a high-speed trans-impedance amplifier, and a voltagecomparator with an output driver
|
Product Attributes
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 2mA |
| Data Rate | 15MBd |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Rise / Fall Time (Typ) | 20ns, 25ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
