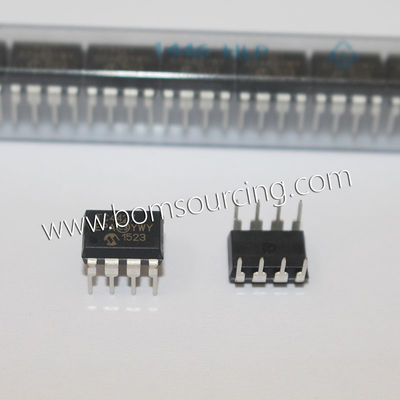

Low Side Gate Driver IC Integrated Circuit Components Non Inverting 8 PDIP TC4427EPA

Low Side Gate Driver IC Integrated Circuit Components Non Inverting 8 PDIP TC4427EPA

  • Low Side Gate Driver IC Integrated Circuit Components Non Inverting 8 PDIP TC4427EPA
  • Low Side Gate Driver IC Integrated Circuit Components Non Inverting 8 PDIP TC4427EPA
  • Low Side Gate Driver IC Integrated Circuit Components Non Inverting 8 PDIP TC4427EPA
Low Side Gate Driver IC Integrated Circuit Components Non Inverting 8 PDIP TC4427EPA
Product Details:
Place of Origin: CHINA
Brand Name: Microchip Technology
Certification: ROHS
Model Number: TC4427EPA
Payment & Shipping Terms:
Minimum Order Quantity: Smallest packaging/contact us
Price: negotiate
Packaging Details: 60PCS/Standard Package
Delivery Time: 2-3 working days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: Consultation
Contact Now
Detailed Product Description
Type: Gate Driver IC Package: DIP8
Features: Low-Side
High Light:

resolver to digital converter ic

,

integrated circuit chip

TC4427EPA Low-Side Gate Driver IC Non-Inverting 8-PDIP ic electronic components

General Description:

The TC4426/TC4427/TC4428 are improved versions of the earlier TC426/TC427/TC428 family of MOSFET drivers. The TC4426/TC4427/TC4428 devices have matched rise and fall times when charging and discharging the gate of a MOSFET. These devices are highly latch-up resistant under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against Electrostatic Discharge (ESD) up to 2.0 kV. The TC4426/TC4427/TC4428 MOSFET drivers can easily charge/discharge 1000 pF gate capacitances in under 30 ns. These devices provide low enough impedances in both the On and Off states to ensure the MOSFET’s intended state is not affected, even by large transients. Other compatible drivers are the TC4426A/TC4427A/ TC4428A family of devices. The TC4426A/TC4427A/ TC4428A devices have matched leading and falling edge input-to-output delay times, in addition to the matched rise and fall times of the TC4426/TC4427/ TC4428 devices.
