Product Details:
Payment & Shipping Terms:
|
| Drain To Source Voltage: | 50V | Gate To Source Voltage: | 20V |
|---|---|---|---|
| Channel Dissipation: | 176.5W | Input Power: | 12.5W |
| Drain Current: | 25A | Storage Temperature: | -40 To +175°C |
| High Light: | n channel mosfet transistor,n channel transistor,25A 12.5W Mosfet Power Transistor |
||

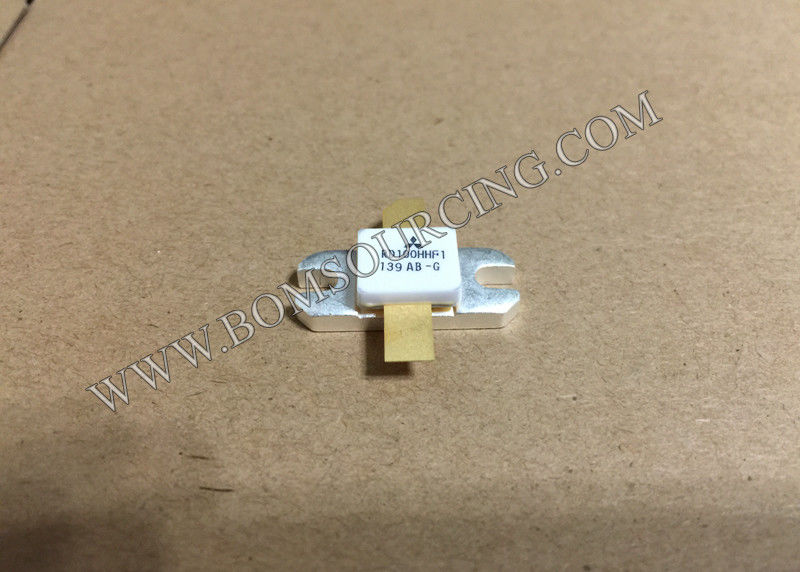

RD100HHF1 MOSFET type transistor specifically designed for HF High power amplifiers applications
FEATURES
• High power and High Gain: Pout>100W, Gp>11.5dB @Vdd=12.5V,f=30MHz
• High Efficiency: 60%typ.on HF Band
APPLICATION
For output stage of high power amplifiers in HF Band mobile radio sets.
