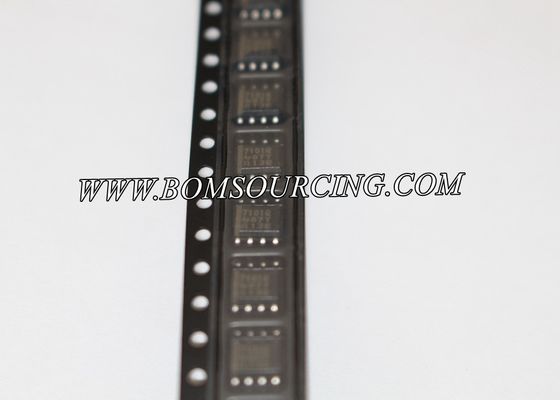

Tps7101qdrg4 Integrated Circuit Components , Low Dropout Voltage Regulator

Tps7101qdrg4 Integrated Circuit Components , Low Dropout Voltage Regulator
Tps7101qdrg4 Integrated Circuit Components , Low Dropout Voltage Regulator

Large Image :  Tps7101qdrg4 Integrated Circuit Components , Low Dropout Voltage Regulator

Product Details:

Place of Origin: CN
Brand Name: TI
Certification: CE
Model Number: TPS7101QDRG4

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: negotiable
Packaging Details: Tape and Reel
Delivery Time: 1-2 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10Kpcs per year
Detailed Product Description
Goods Condition: Brand New Part Status: Active
Lead Free / Rohs: Complaint Function: Regulator
Mounting Type: SMD Package: SOIC8
High Light:

resolver to digital converter ic

,

ic electrical component

,

Tps7101qdrg4 Integrated Circuit Components

TPS7101QDRG4 LOW-DROPOUT VOLTAGE REGULATOR 1.2V to 9.75V 0.5A SOIC8



Description



The TPS71xx integrated circuits are a family of micropower low-dropout (LDO) voltage regulators. An order of magnitude reduction in dropout voltage and quiescent current over conventional LDO performance is achieved by replacing the typical pnp pass transistor with a PMOS device. Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low (maximum of 32 mV at an output current of 100 mA for the TPS7150) and is directly proportional to the output current (see Figure 1). Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and remains independent of output loading (typically 285 µA over the full range of output current, 0 mA to 500 mA). These two key specifications yield a significant improvement in operating life for battery-powered systems. The LDO family also features a sleep mode; applying a TTL high signal to EN (enable) shuts down the regulator, reducing the quiescent current to 0.5 µA maximum at TJ = 25°C.





Manufacturer Texas Instruments
Series -
Packaging ? Tape & Reel (TR) ?
Part Status Active
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 10V
Voltage - Output (Min/Fixed) 1.2V
Voltage - Output (Max) 9.75V
Voltage Dropout (Max) 0.4V @ 500mA
Current - Output 500mA
Current - Quiescent (Iq) 350µA
Current - Supply (Max) 460µA
PSRR 59dB ~ 54dB (120Hz)
Control Features Enable, Power Good
Protection Features Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Part Number TPS7101
