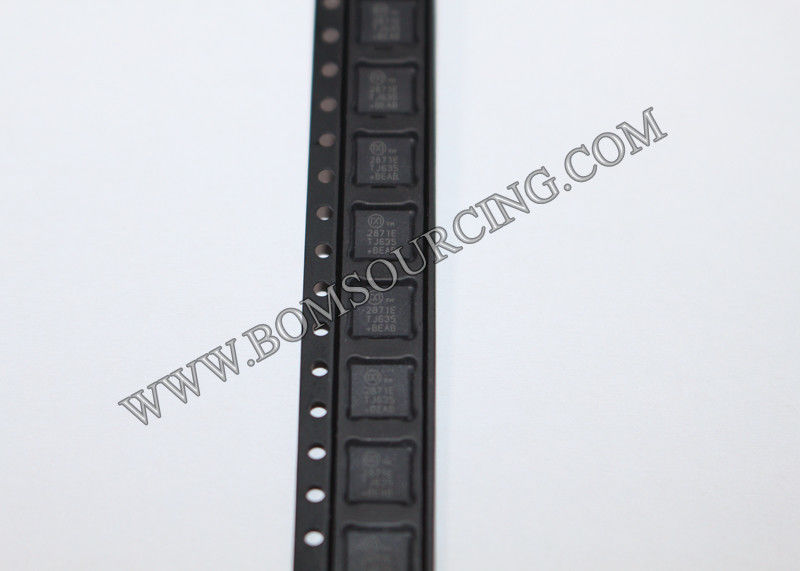

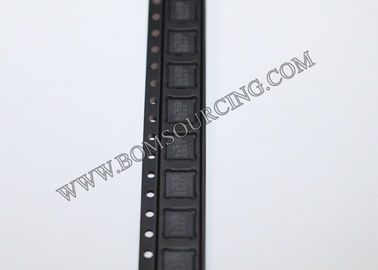

MAX2871ETJ+ Pll Based Frequency Synthesizer IC Chip With Integrated VCOs

MAX2871ETJ+ Pll Based Frequency Synthesizer IC Chip With Integrated VCOs

  • MAX2871ETJ+ Pll Based Frequency Synthesizer IC Chip With Integrated VCOs
  • MAX2871ETJ+ Pll Based Frequency Synthesizer IC Chip With Integrated VCOs
  • MAX2871ETJ+ Pll Based Frequency Synthesizer IC Chip With Integrated VCOs
MAX2871ETJ+ Pll Based Frequency Synthesizer IC Chip With Integrated VCOs
Product Details:
Place of Origin: CN
Brand Name: MAXIM
Certification: CE
Model Number: MAX2871ETJ+
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: negotiable
Packaging Details: Tape and Reel
Delivery Time: 1-2 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10Kpcs per year
Contact Now
Detailed Product Description
Goods Condition: Brand New Part Status: Active
Lead Free / Rohs: Complaint Function: SYNTHESIZER
Mounting Type: SMD Package: QFN
High Light:

resolver to digital converter ic

,

ic electrical component

,

IC Chip With Integrated VCOs

MAX2871ETJ+ Low Normalized Inband Phase Noise of -230dBc/Hz SYNTHESIZER IC



General Description



The MAX2871 is an ultra-wideband phase-locked loop (PLL) with integrated voltage control oscillators (VCOs) capable of operating in both integer-N and fractional-N modes. When combined with an external reference oscillator and loop filter, the MAX2871 is a high-performance frequency synthesizer capable of synthesizing frequencies from 23.5MHz to 6.0GHz while maintaining superior phase noise and spurious performance. The ultra-wide frequency range is achieved with the help of multiple integrated VCOs covering 3000MHz to 6000MHz, and output dividers ranging from 1 to 128. The device also provides dual differential output drivers, which can be independently programmed to deliver -1dBm to +8dBm differential output power. Both outputs can be muted by either software or hardware control. The MAX2871 is controlled by a 3-wire serial interface and is compatible with 1.8V control logic. The device is available in a lead-free, RoHS-compliant, 5mm x 5mm, 32-pin TQFN package, and operates over an extended -40°C to +85°C temperature range. The MAX2871 has an improved feature set and better overall phase noise and is fully pin- and software- compatible with the MAX2870.





Manufacturer Maxim Integrated
Series -
Packaging ? Tube ?
Part Status Active
Function Fractional, Integer-N Synthesizer/ VCO
Frequency 23.5MHz ~ 6GHz
RF Type General Purpose
Secondary Attributes -
Package / Case 32-WFQFN Exposed Pad
Supplier Device Package 32-TQFN (5x5)
