| Place of Origin: | CHINA |
| Brand Name: | Analog Devices Inc. |
| Certification: | ROHS |

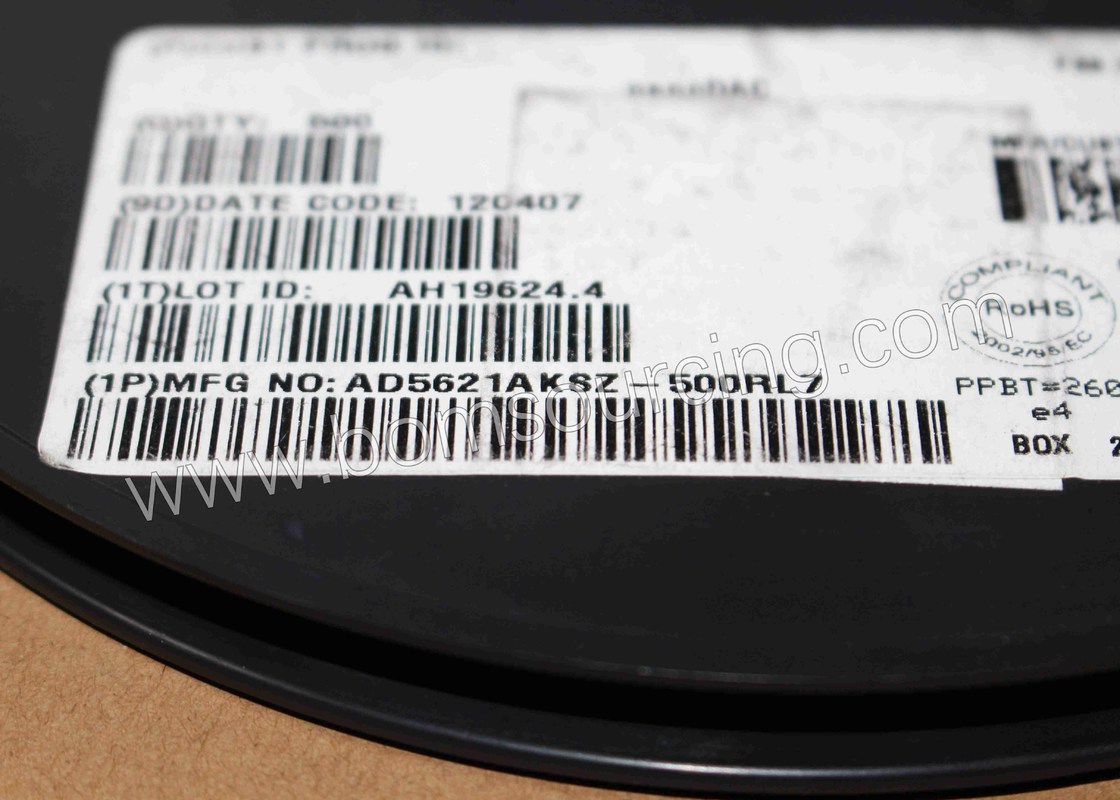

| Model Number: | AD5621AKSZ-500RL7 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | 500PCS/Standard Package |
| Delivery Time: | 2-3 working days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | Consultation |
| Number Of Bits: | 12 | Data Interface: | SPI, DSP |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 125°C | ||
| High Light: | integrated circuit chip,ic electrical component |
||
FEATURES
6-lead SC70 and LFCSP packages
Micropower operation: 100 µA maximum at 5 V
Power-down typically to 0.2 µA at 3 V
2.7 V to 5.5 V power supply
Guaranteed monotonic by design
Power-on reset to 0 V with brownout detection
3 power-down functions
Low power serial interface with Schmitt-triggered inputs
On-chip output buffer amplifier, rail-to-rail operation
SYNC interrupt facility
APPLICATIONS
Voltage level setting
Portable battery-powered instruments
Digital gain and offset adjustment
Programmable voltage and current sources
Programmable attenuators
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 10µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±6 (Max), ±0.5 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
