| Place of Origin: | CHINA |
| Brand Name: | Alpha & Omega Semiconductor Inc. |
| Certification: | ROHS |
| Model Number: | AOD4454 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | 2500PCS/Standard Package |
| Delivery Time: | 2-3 working days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | Consultation |
| FET Type: | N-Channel | Drain To Source Voltage: | 150V |
|---|---|---|---|
| Vgs: | ±20V | Operating Temperature: | -55°C ~ 175°C |
| High Light: | integrated circuit chip,ic electrical component |
||

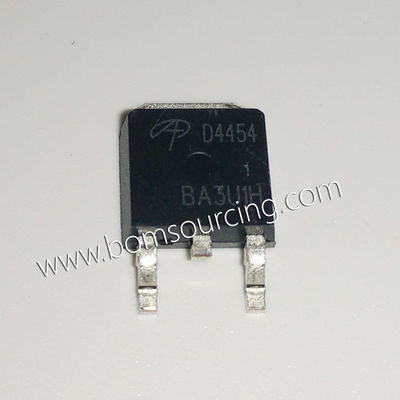

AOD4454 D4454 N-Channel MOSFET 150V 20A 100W Surface Mount TO-252
General Description
The AOD4454 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).This device is ideal for boost converters and synchronous rectifiers for consumer, telecom, industrial power supplies and LED backlighting.
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta), 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Rds On (Max) @ Id, Vgs | 94 mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4.6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 985pF @ 75V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W , 100W |
| Operating Temperature | -55°C ~ 175°C |
| Mounting Type | Surface Mount |
