| Place of Origin: | CHINA |
| Brand Name: | Texas Instruments |
| Certification: | ROHS |
| Model Number: | LM1117IMPX-5 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | 2000PCS/Standard Package |
| Delivery Time: | 2-3 working days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | Consultation |
| Output Type: | Fixed | Output Configuration: | Positive |
|---|---|---|---|
| Protection Features: | Over Current, Over Temperature | Operating Temperature: | -40°C ~ 125°C |
| Highlight: | resolver to digital converter ic,integrated circuit chip |
||

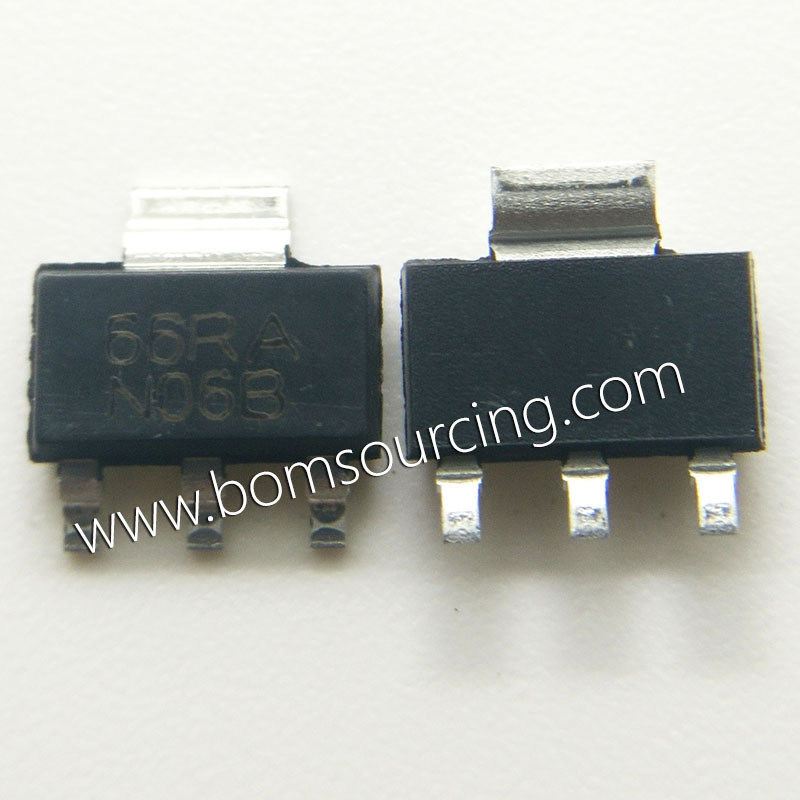

LM1117IMPX-5 Linear Voltage Regulator IC Positive Fixed 1 Output 800mA SOT-223-4
Decriptions:
The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current.The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. In addition, it is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V,and 5 V.The LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener trimmed bandgap reference to assure output voltage accuracy to within ±1%.
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 5mA |
| Current - Supply (Max) | 10mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
