| Place of Origin: | CHINA |
| Certification: | ROHS |
| Model Number: | TDA8571J |
| Minimum Order Quantity: | Smallest packaging/contact us |
|---|---|
| Price: | negotiate |
| Packaging Details: | 18PCS/Standard Package |
| Delivery Time: | 2-3 working days |
| Payment Terms: | Western Union, T/T,Paypal |
| Supply Ability: | Consultation |
| Type: | Class B | Output Type: | 4-Channel |
|---|---|---|---|
| Voltage - Supply: | 6V ~ 18V | Operating Temperature: | -40°C ~ 85°C |
| Highlight: | resolver to digital converter ic,integrated circuit chip |
||

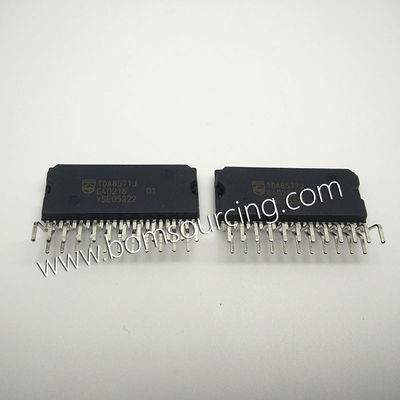

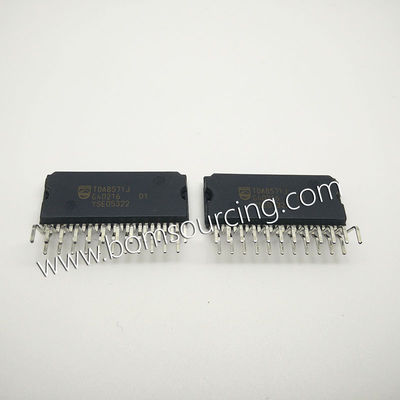

TDA8571J Audio Amplifier IC 4-Channel (Quad) Class B
FEATURES
• Requires very few external components
• High output power • Low output offset voltage
• Fixed gain • Diagnostic facility (distortion, short-circuit and temperature pre-warning)
• Good ripple rejection
• Mode select switch (operating, mute and standby)
• Load dump protection
• Short-circuit safe to ground and to VP and across the load
• Low power dissipation in any short-circuit condition
• Thermally protected • Reverse polarity safe
• Electrostatic discharge protection
• No switch-on/switch-off plop
• Flexible leads
• Low thermal resistance
• Pin compatible with the TDA8568Q, except for the gain.
GENERAL DESCRIPTION
The TDA8571J is a integrated class-B output amplifier contained in a 23-lead Single-In-Line (SIL) plastic power package. It contains four amplifiers in a BTL configuration, each with a gain of 34 dB. The output power is 4 × 40 W (EIAJ) into a 4 Ω load.
| Type | Class B |
| Output Type | 4-Channel (Quad) |
| Max Output Power x Channels @ Load | 45W x 4 @ 4Ohm |
| Voltage - Supply | 6V ~ 18V |
| Features | Depop, Mute, Short-Circuit and Thermal Protection, Standby |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
